| Functions |

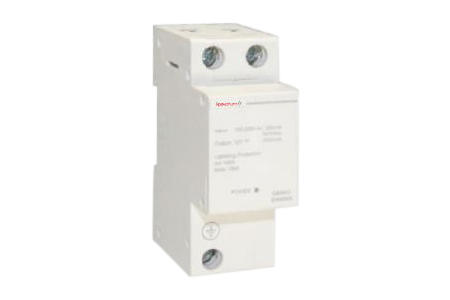

Power supply & Surge Protection |
| Rated voltage Ue: |
Vac |
220 |
| Rated input voltage range: |
Vac |
100-265 |
| Frequency (HZ): |
Hz |
50/60 |
| Rated input current |
mA |
350 |
| Rated output voltage |
Vdc |
12 |
| Rated output current |
A |
2.5 |
| Type / test class of surge protection: |
2 / II |
| Numbers of Modules( 1 module=18mm) |
mm |
36(2 P) |
| Max.Cont. operating voltage Uc: |
Vac |
175, 275 |
| Max.discharge current Imax (8/20) per pole Imax: |
KA |
15 |
| Nominal discharge current In (8/20) per pole In: |
KA |
10 |
| Max. working capacity (Max.numbers of breakers ) |
10*(RCBO/ MCB) |
| Conductor cross-sections |
mm² |
38 |
| Pollution degree |
2 |
| Ambient temperature: |
ºC |
-15 – +40 |
| Storage temperature: |
ºC |
-25—+70 |
| Humidity |
< 95% |
| Altitude: |
m |
<=2000 |
| Terminal connection |
Cable/Pin-type busbar |
| Mounting |
Din rail En60715(35mm) by means of fast clip device |
| Connection |
From top to bottom |
