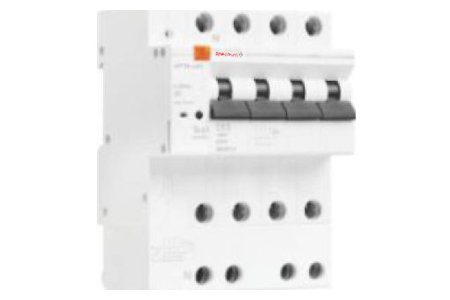

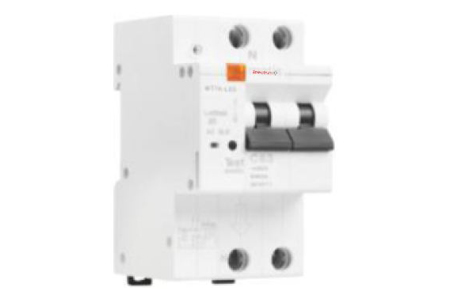

| Poles |
|
|
| Rated voltage Ue |
Vac |
230 |
400 |
| Frequency (HZ): |
Hz |
50/60 |
| Rated current |
A |
16,20,25,32,40,50,63,80 |
| Type (wave form of the earth leakage sensed) |
AC |
| Rated residual current (I∆n) |
mA |
30 |
| Rated insulation voltage Ui |
Vac |
500 |
| Rated Breaking capacity acc.to IEC61009 ultimate Icn |
A |
6000 |
| Breaking time under I∆n |
<=0.1 S |
| Breaking time under Icn |
<=0.04S |
| Triping characteristic |
C (5-10In) |
|
|
| Breaking time when voltage is over 265Vac |
10S |
| Over/undder voltage warning |
when voltage is higher than 250Vac or lower than 190Vac |
Breaking time when the current reach the
max.current or power setup |
5s |
The time for switching on automatically after
auto-test of earth leakage current |
5s |
| Electric life |
Times |
|
| Mechanical life |
Times |
|
| Conductor cross-sections |
mm² |
38 |
| Pollution degree |
2 |
| Numbers of modules( 1 module=18mm) |
3 (54mm) |
5 (90mm) |
| Ambient temperature: |
ºC |
-15 – +40 |
| Storage temperature: |
ºC |
-25—+70 |
| Humidity |
< 95% |
| Altitude: |
m |
<=2000 |
| Terminal connection |
Cable/Pin-type busbar |
| Connection |
From top to bottom |
